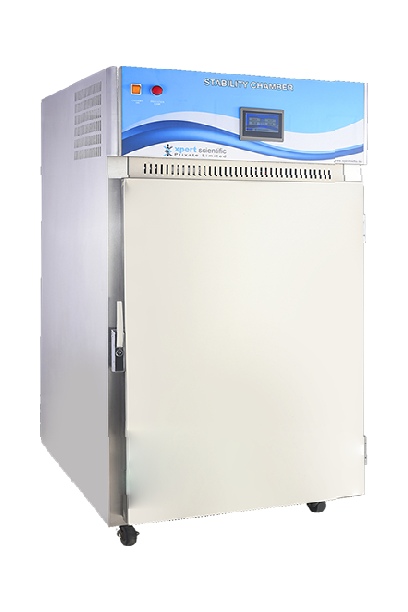

Stability Chambers
A. Specifications:
| Model | GMP & Standard |
| Temperature Range | 20°C to 60°C |
| Temperature Accuracy | ± 0.2°C |
| Temperature Uniformity | ± 2°C |
| Humidity Range | 40% to 95 %Rh |
| Humidity Accuracy | 2% |
| Humidity Uniformity | ±3% |
B. Common Features:
Standalone Chamber Construction:
- 75mm thick PUF Insullattion with SS skin on both side
- Inner SS 304 Mirror & Outer SS 304 Matt finish or Powder Coated
- Perforated tray with unique tray arrangement
- Inside Glass Door for viewing without disturbing the inside condition
- Metal Door with Gasket & latch on outside
- Force air circulation for uniform Temperature, & Humidity
- SS U shape tubular air heater
- PU castor wheels for ease of movement
Software:
- Full filling the requirement of 21 CFR part 11 compliance
- Automatic backup facility
- Passwaord reset & expiry
- All user’s activities are tracable in Audit Trails
- Mean Kinetic Temperature Calculations
- Data export in pdf format
- Data Trends
PLC Base Control System:
- Stability Chamber operation control through PLC,
- Standby Cooling & Standby Humidity Auto changeover
- Calender function for cooling system
- PID Auto Tune Facility
HMI (TSD):
- Human Machine Interface ( Touch Screen Display)
- All operational setting done through 4.3” TFT LCD with LED Backlight
- Inbuilt Data storage facility.
- Adjustable data interval timing.
- Off line Printing
- Password Protection
Standby System:
- Ready to use cooling & humidity system
- Automatic changeover in case of running system fails
- Automatic changeover of temperature & humdity sensor in case of controlling sensor fails
Cooling system:
- Emerson make compressor
- CFC free refrigerant
Humidity system:
- Energy efficent humidity system
- High Temperature resistance float valve & float switch
- Separate Reservoir tank for both system
Alarms/Event:
- Temperature & Humidity deviations
- Mains Failure
- Temperature Overshoot
- Humidity Undershoot ( for humidity chemer only)
- Water Low
- Chamber Shutdown
- Door Opening
Safety:
- Temperature Overshoot/Undershoot
- Humidity Overshoot/Undershoot ( For stability chamber only)
- Low water level
- MCB for overload
- Time delay is provided to safeguard the compressor
Door Access:
- Password protected door access through HMI
- Restrict unauthorised person to access the chamber
Mobile Alert:
- Time of alarm
- Equipment Name
- Type of Alarm
Documentation:
- IQ, OQ & PQ
- Material test certificate
- Calibration Certificate (Through NABL Lab)
- Operation Manual
- Maintenance Manual
- Drawing Electrical, General Assembly & Mapping Positions
- Training to chamber handling user
Scanner:
- 4 Temp + 4 RH point probe can be installed to map the condition in various location of the chamber
- Excellent uniformity
Sensor:
- High quality Temperature & Humidity sensor
- Fast Response time
- Low drift
C. Chamber Size
| XPERT CHAMBER SIZES | |||||||||
| MODEL | CAPACITY LTRS | DIMENSION IN CM | TRAY SIZE | TRAY | |||||
| INTERNAL | EXTERNAL | ||||||||
| W | D | H | W | D | H | ||||
| XSS0K100 | 100 | 45 | 40 | 56 | 59.5 | 76 | 110 | 42X37X1.5 | 6 |
| XSS0K200 | 200 | 60 | 60 | 60 | 75 | 105 | 117 | 57X57X1.5 | 7 |
| XSS0K325 | 324 | 60 | 60 | 90 | 75 | 105 | 147 | 57X57X1.5 | 10 |
| XSS0K400 | 400 | 60 | 60 | 112 | 75 | 105 | 169 | 57X57X1.5 | 13 |
| XSS0K500 | 500 | 70 | 71.5 | 100 | 85 | 116.5 | 157 | 67X68.5X1.5 | 12 |
| XSS0K600 | 600 | 70 | 71.5 | 120 | 85 | 116.5 | 177 | 67X68.5X1.5 | 14 |
| XSS0K800 | 800 | 80 | 83.5 | 120 | 95 | 138.5 | 177 | 77X77X1.5 | 14 |
| XSS0001K | 1000 | 80 | 83.5 | 150 | 95 | 138.5 | 212 | 77X77X1.5 | 18 |
